[CSS] Gridbox

Grid layout enables an author to align elements into columns and rows.

Sometimes flexbox is hard to construct the layout we want.

If you use a gridbox, you can easily make a layout like a table.



Let's make a default code.

<div class="container">
  <div class="box red">1</div>
  <div class="box yellow">2</div>
  <div class="box green">3</div>
  <div class="box blue">4</div>
  <div class="box purple">5</div>
</div>

.container {
  width: 600px;
  height: 600px;
  border: 3px solid black;
  display: grid;
}

.box {
  width: 100px;
  height: 100px;
  font-size: 30px;
  display: flex;
  justify-content: center;
  align-items: center;
}

.red {
  background-color: tomato;
}

.yellow {
  background-color: goldenrod;
}

.green {
  background-color: teal;
}

.blue {
  background-color: steelblue;
}

.purple {
  background-color: slateblue;
}

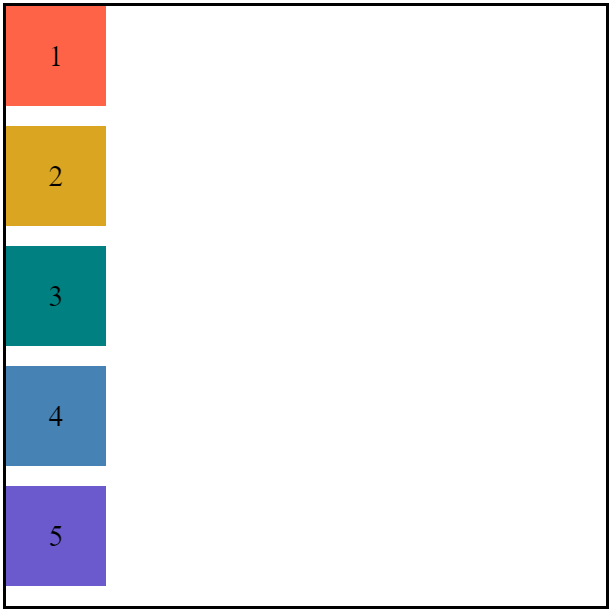

The most important thing is display: grid;.

Now, let's start.

Axis

The axis is important because boxes aligned along the axis. There are two axes of a grid layout.

Block Axis

The block axis or column axis is a vertical axis.

Inline Axis

The inline axis or row axis is a horizontal axis.

Template

The grid-template-rows property defines the line names and track sizing functions of the grid rows.

.container {
  ...
  grid-template-rows: 100px 150px 50px 130px 70px;
 }

 .box {
   ...
   /*height: 100px */
 }

The grid-template-columns property defines the line names and track sizing functions of the grid columns.

.container {
  ...
  grid-template-columns: 100px 150px 80px;
}

.box {
  ...
  /* width: 100px */
}

The grid-template-columns property is prior to grid-template-rows, so it applied first.

The example code has 3 column value so the result has 3 columns in a row, and the remaining box moves to the next row.

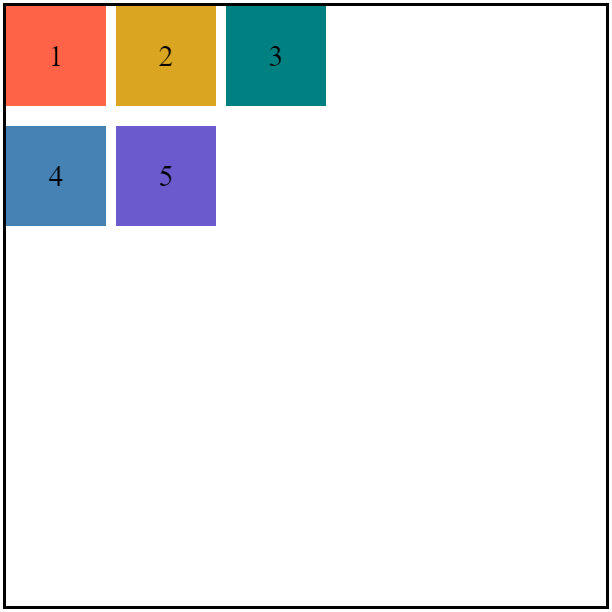

The grid-column-gap property sets the size of the gap between an element's columns.

The grid-row-gap property sets the size of the gap between an elements' grid rows.

.container {
  ...
  grid-template-columns: repeat(3, 100px);
  grid-template-rows: 100px 100px;
  grid-column-gap: 10px;
  grid-row-gap: 20px;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

The grid-template-areas property specifies named grid areas, establishing the cells in the grid and assigning them names.

The grid-area property specifies a name to grid areas.

.container {
  ...
  grid-template-columns: repeat(2, auto) 100px;
  grid-template-rows: repeat(2, 40px) auto 40px;
  grid-template-areas:
    "header header header"
    "nav nav nav"
    "section section aside"
    "footer footer footer";
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

.red {
  ...
  grid-area: header;
}

.yellow {
  ...
  grid-area: nav;
}

.green {
  ...
  grid-area: section;
}

.blue {
  ...
  grid-area: aside;
}

.purple {
  ...
  grid-area: footer;
}

Isn't it awesome? Look at this, how easy to make a layout.

Row and Column

The grid-row-start property specifies a grid item's start position within the grid row by contributing a line, a span, or nothing to its grid placement, thereby specifying the inline-start edge of its grid area.

The grid-row-end property specifies a grid item's end position within the grid row by contributing a line, a span, or nothing to its grid placement, thereby specifying the inline-end edge of its grid area.

The grid-column-start property specifies a grid item's start position within the grid column by contributing a line, a span, or nothing to its grid placement, thereby specifying the block-start edge of its grid area.

The grid-column-end property specifies a grid item's end position within the grid column by contributing a line, a span, or nothing to its grid placement, thereby specifying the block-end edge of its grid area.

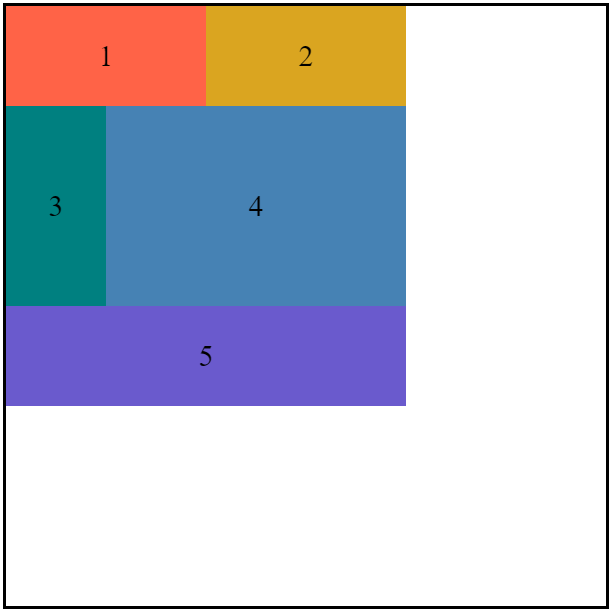

.container {
  ...
  grid-template-columns: repeat(4, 100px);
  grid-template-rows: repeat(4, 100px);
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

.red {
  ...
  grid-row-start: 1;
  grid-row-end: 2;
  grid-column-start: 1;
  grid-column-end: 3;
}

.yellow {
  ...
  grid-row-start: 1;
  grid-row-end: 2;
  grid-column-start: 3;
  grid-column-end: 5;
}

.green {
  ...
  grid-row-start: 2;
  grid-row-end: 4;
  grid-column-start: 1;
  grid-column-end: 2;
}

.blue {
  ...
  grid-row-start: 2;
  grid-row-end: 4;
  grid-column-start: 2;
  grid-column-end: 5;
}

.purple {
  ...
  grid-row-start: 4;
  grid-row-end: 5;
  grid-column-start: 1;
  grid-column-end: 5;
}

You can input the beginning and end of each row and column for each box.

Automatic Layout

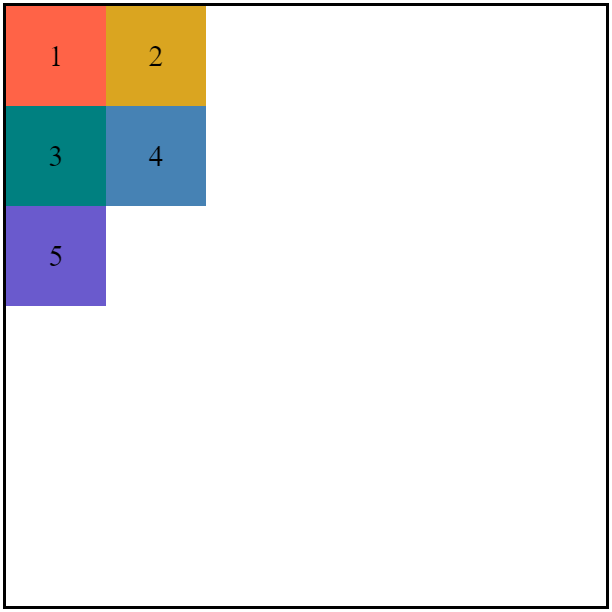

The grid-auto-rows property specifies the size of an implicitly-created grid row track or pattern of tracks.

.container {
  ...
  grid-template-columns: repeat(2, 100px);
  grid-auto-rows: 100px;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

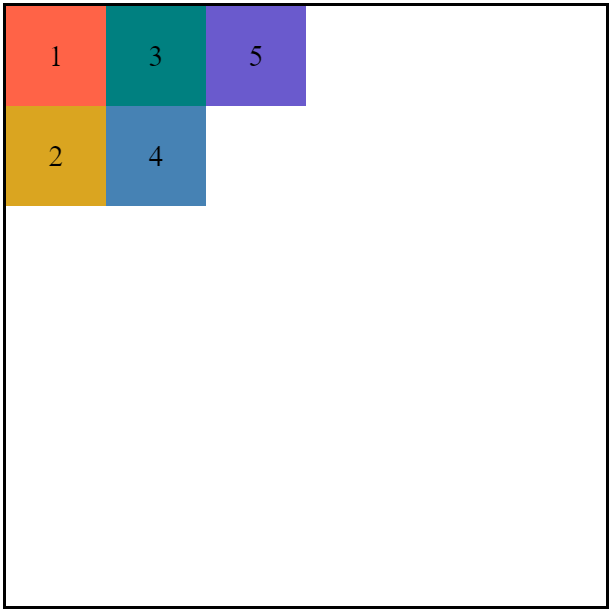

The grid-auto-flow property controls how the auto-placement algorithm works, specifying exactly how auto-placed items get flowed into the grid.

The grid-auto-columns property specifies the size of an implicitly-created grid column track or pattern of tracks.

.container {
  ...
  grid-template-rows: repeat(2, 100px);
  grid-auto-flow: column;
  grid-auto-columns: 100px;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

Alignment

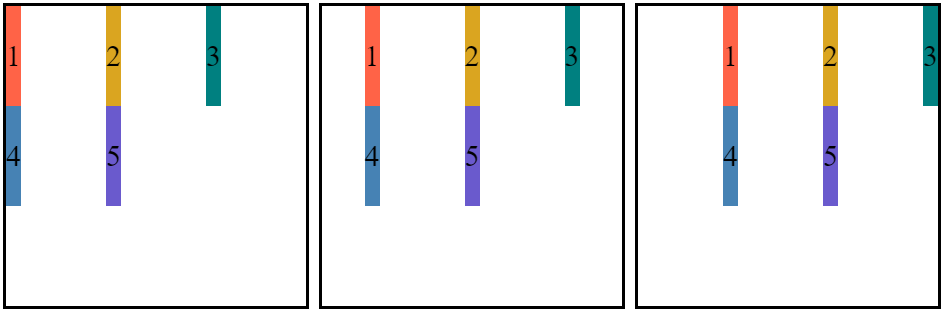

The justify-items property defines the default justify-self for all items of the box, giving them all a default way of justifying each box along the appropriate axis.

.container {
  ...
  grid-template-columns: repeat(3, 1fr);
  grid-template-rows: repeat(3, 1fr);
  justify-items: start / center / end;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

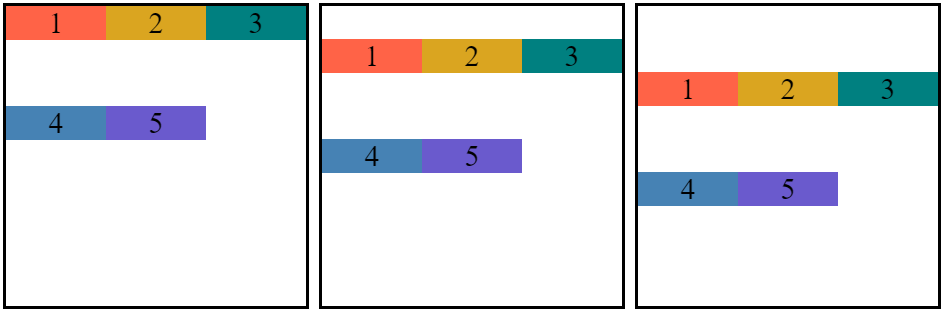

The align-items property sets the align-self value on all direct children as a group.

.container {
  ...
  grid-template-columns: repeat(3, 1fr);
  grid-template-rows: repeat(3, 1fr);
  align-items: start / center / end;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

The justify-content property defines how the browser distributes space between and around content items along the inline-axis of a grid container.

.container {
  ...
  grid-template-columns: repeat(3, 100px);
  grid-template-rows: repeat(3, 100px);
  justify-content:
    start / center / end /
    space-around / space-between / space-evenly;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

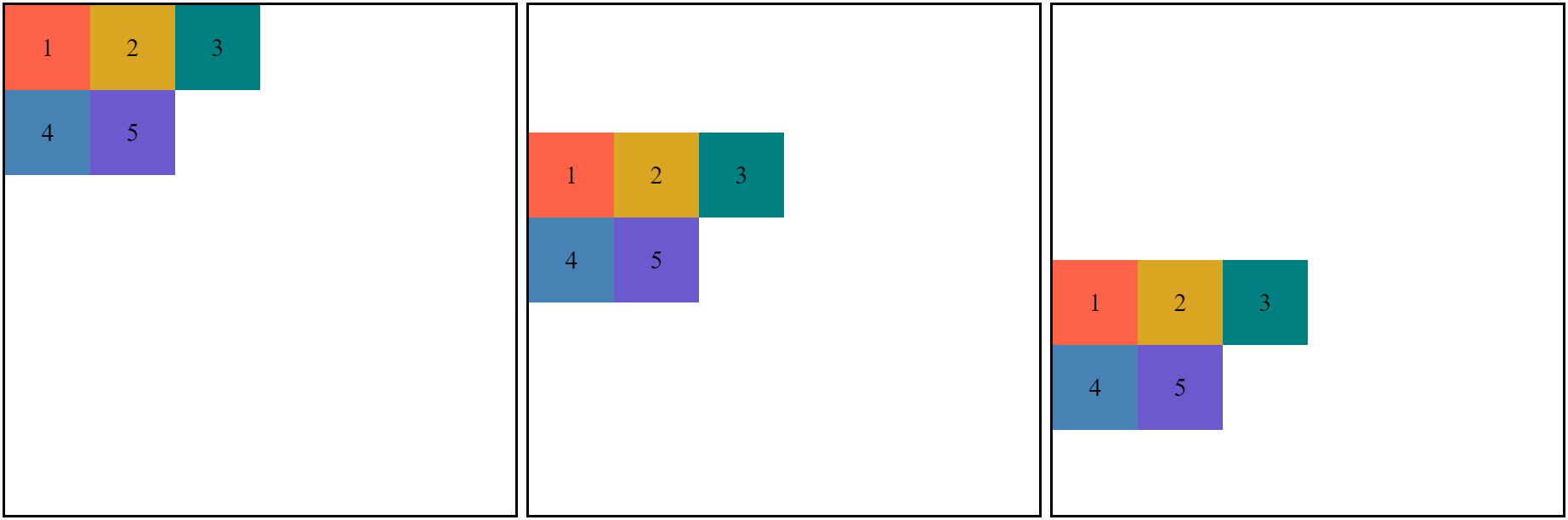

The align-content property sets the distribution of space between and around content items along a block-axis.

.container {
  ...
  grid-template-columns: repeat(3, 100px);
  grid-template-rows: repeat(3, 100px);
  align-content:
    start / center / end /
    space-around / space-between / space-evenly;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

You can see the bottom space. That's because a 3x3 grid is aligned whole.

Sizing

The minmax() function defines a size range greater than or equal to min and less than or equal to max. It is used with grid layout.

minmax(min, max)

.container {
  ...
  grid-template-columns: repeat(3, minmax(50px, 100px));
  grid-template-rows: repeat(3, minmax(50px, 100px));
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

Try to reduce and expand the browser, and see the box sizes. It shrinks or expands to the size we set.

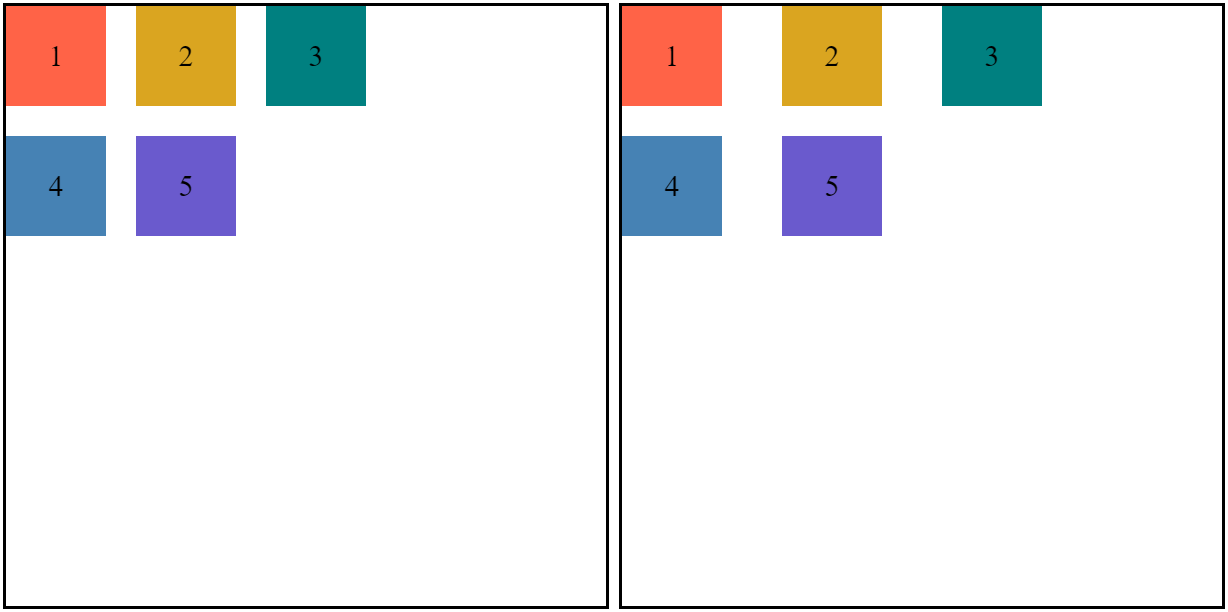

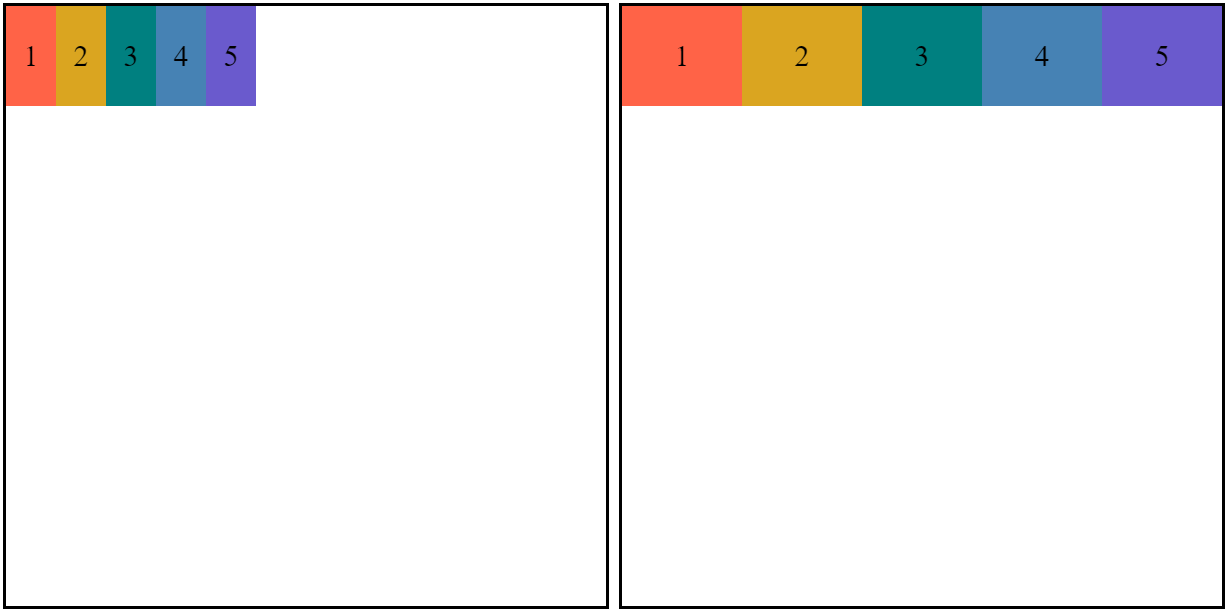

This time I'll show you auto-fill and auto-fit.

.container {
  ...
  grid-template-columns: repeat(auto-fill / auto-fit, minmax(50px, 1fr));
}

.box {
  ...
  /* width: 100px; */
}

Try to resize the browser.

auto-fill fills automatically as long as it can place the size of the box.

auto-fit automatically fits a container by resizing the boxes.

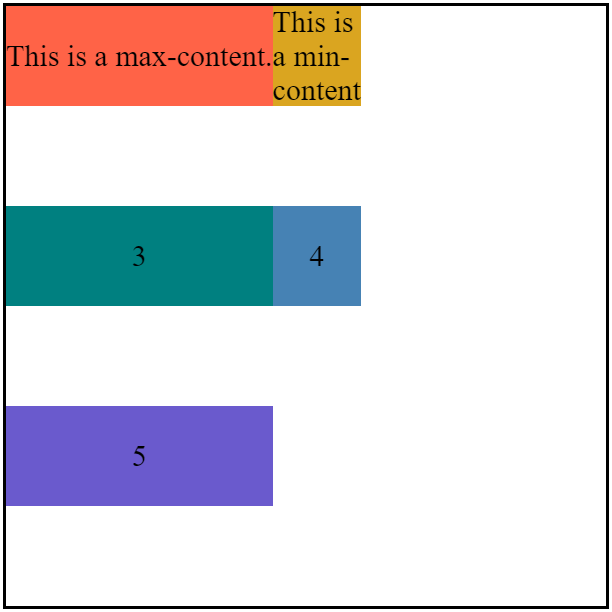

Now, we will find out about min-content and max-content.

<div class="container">
  <div class="box red">This is a max-content.</div>
  <div class="box yellow">This is a min-content.</div>
  ...
</div>

.container {
  ...
  grid-template-columns: max-content min-content;
}

.box {
  ...
  /* width: 100px; */
}

The min-content resizes the box to fit the minimum size of the contents of the columns.

The max-content resizes the box to fit the maximum size of the contents of the columns.

Shorthand Property

The grid-gap property sets the gaps between rows and columns.

grid-gap: <grid-row-gap & grid-column-gap>
grid-gap: <grid-row-gap> <grid-column-gap>

.container {
  ...
  grid-template-columns: 100px 100px 100px;
  grid-template-rows: 100px 100px;
  grid-gap: 30px / 30px 60px;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}



The grid-row property specifies a grid item's size and location within a grid row by contributing a line, a span, or nothing to its grid placement, thereby specifying the inline-start and inline-end edge of its grid area.

The grid-column property specifies a grid item's size and location within a grid column by contributing a line, a span, or nothing to its grid placement, thereby specifying the block-start and block-end edge of its grid area.

Simply, the grid-row property is a shorthand property of the grid-row-start/end and the grid-column property is a shorthand property of the grid-column-start/end.

grid-row: <grid-row-start> / <grid-row-end>
grid-column: <grid-column-start> / <grid-column-end>

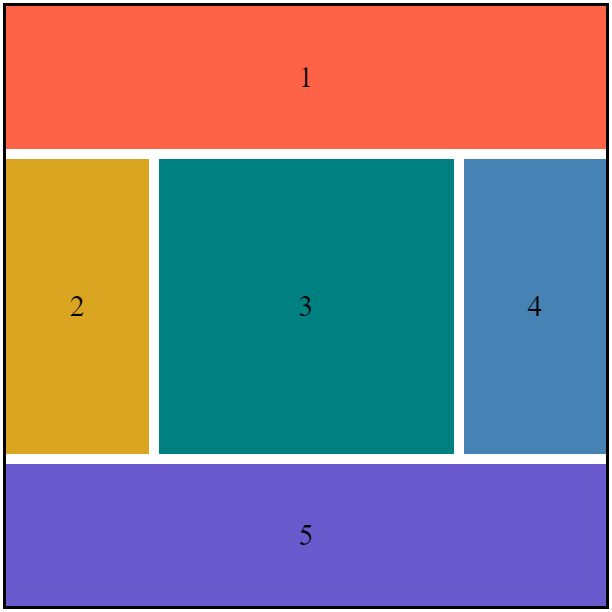

.container {
  ...
  grid-template-columns: repeat(4, 1fr);
  grid-template-rows: repeat(4, 1fr);
  grid-gap: 10px;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}

.red {
  ...
  grid-column: span 4;
}

.yellow {
  ...
  grid-row: 2 / 4;
  grid-column: 1 / 2;
}

.green {
  ...
  grid-row: 2 / 4;
  grid-column: 2 / 4;
}

.blue {
  ...
  grid-row: 2 / 4;
  grid-column: 4 / 5;
}

.purple {
  ...
  grid-column: span 4;
}

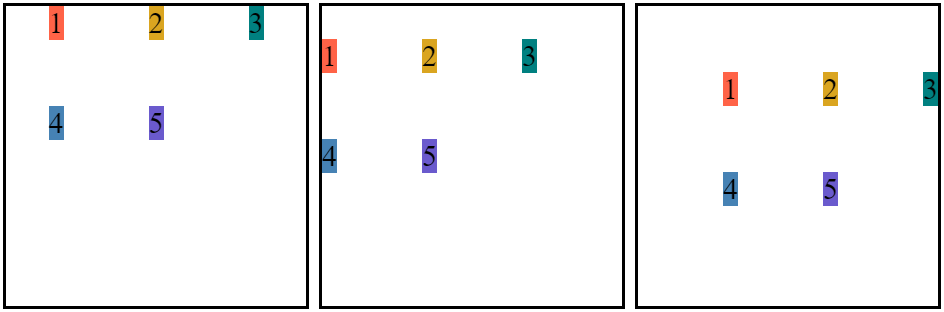

The place-items property allows you to align items along both the block and inline directions at once in a relevant layout system. If the second value is not set, the first value is also used for it.

place-items: <align-items & justify-items>
place-items: <align-items> <justify-items>

.container {
  ...
  grid-template-columns: repeat(3, 1fr);
  grid-template-rows: repeat(3, 1fr);
  place-items: start center / center start / end;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}



The place-content property allows you to align content along both the block and inline directions at once in a relevant layout system.

place-content: <align-content & justify-content>
place-content: <align-content> <justify-content>

.container {
  ...
  grid-template-columns: repeat(3, 100px);
  grid-template-rows: repeat(3, 100px);
  place-content: start space-between / center / space-around space-evenly;
}

.box {
  ...
  /* width: 100px; */
  /* height: 100px; */
}
